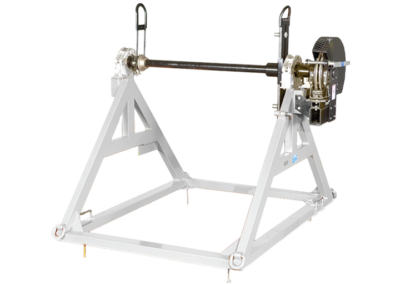

CRS-96/67 Reel Stand
CRS-96/67 – 24,000 LBS. MAX CAPACITY Reel Stands
The Sherman+Reilly CRS-96/67 Conductor Reel Stands are for stationary holding/supporting of reels for dispensing conductor from a fixed position.
Maximum reel size for the CRS-96/67 is 96 in. OD by 67 in. wide. It has two options to choose from, the CRS-96/67-20 with a maximum reel weight of 20,000 lbs. and a drive bar diameter of 3-15/16 in. or the CRS-96/67-24 with a maximum reel weight of 24,000 lbs. and a drive bar diameter of 5 in.
Key Features
CAPABILITY
CRS-96/67 maximum reel size 96 in. OD by 67 in. wide.
CRS-96/67-20 maximum reel weight 20,000 lbs., CRS-96/67-24 maximum reel weight 24,000 lbs.
Configuration
Frame configuration is a reinforced truss on a rectangular base. Constructed with structural-grade steel tubing with anchor rings and grounding bars at each corner.
Operation
Options
Coupled with a compatible tensioner, it can be hydraulically controlled by:
• Sherman+Reilly T-1608
• Sherman+Reilly T-2608
• Sherman+Reilly T-7212
• Sherman+Reilly PTR-7230
• Sherman+Reilly PTR-7240
All Specifications
CRS-96/67 Reel Stand
About the CRS-96/67
The Sherman+Reilly CRS-96/67 Conductor Reel Stand is for stationary holding/supporting of reels for dispensing conductor from a fixed position. Maximum reel size for the CRS-96/67 is 96 in. OD by 67 in. wide with a reel capacity of 20,000 lbs.
It is constructed of structural grade steel tubing, also all components are welded for maximum rigidity. The CRS-96/67 features integrated manual controls for the optimal hydraulic retrievers. Coupled with a compatible tensioner, such as the T-2608 or T-7212, it can be automatically controlled by the tensioning equipment. Quick-disconnect fittings allow for rapid setup. Furthermore, this stand has a manual, mechanical payout brake.
In addition, each conductor reel stand is equipped with four (4) anchoring rings at each corner which make it easy for operators to further secure.
▪ Constructed with structural-grade steel tubing
▪ Coupled with a compatible tensioner, it can be hydraulically controlled by:
• Sherman+Reilly T-1608
• Sherman+Reilly T-2608
• Sherman+Reilly T-7212
• Sherman+Reilly PTR-7230
• Sherman+Reilly PTR-7240
▪ Disc-caliper payout brake for controlled tail-tension
▪ Quick-disconnect hydraulic fittings allow for rapid set up with purchase of Hydraulic Retriever Package
▪ Anchor rings and grounding bars at each corner
For More Information about the CRS-96/67 contact your local Sherman+Reilly Representative.
CRS-96/67-20k
-
Maximum Reel Size:
96 in. OD x 67 in. wide
-
Maximum Reel Weight:
20,000 lbs. static at full width
-
Payout Brake:
Manual, 20 in. dia. disc. Aluminum‑bronze
-
Frame Configuration:
Reinforced truss on rectangular base
-
Frame Construction:
High-strength steel tubing
-
Length, overall, nom.:
10 ft., 10 in.
-
Width, overall, nom.:
8 ft.
-
Height, overall, nom.:
6 ft., 2 in., without reel
-
Grounding:
3/4 in. dia. copper ground loops (4)
-
Tie-Downs:
1 in. dia. Steel D-Rings (4)
-
Paint:
S+R White
-
Drive Bar Diameter:
2-5/8 in.
CRS-96/67-24k
-
Maximum Reel Size:
96 in. OD x 67 in. wide
-
Maximum Reel Weight:
24,000 lbs. static at full width
-
Payout Brake:
Manual, 20 in. dia. disc. Aluminum‑bronze
-
Frame Configuration:
Reinforced truss on rectangular base
-
Frame Construction:
High-strength steel tubing
-
Length, overall, nom.:
10 ft., 10 in.
-
Width, overall, nom.:
8 ft.
-
Height, overall, nom.:
6 ft., 2 in., without reel
-
Grounding:
3/4 in. dia. copper ground loops (4)
-
Tie-Downs:
1 in. dia. Steel D-Rings (4)
-
Paint:
S+R White
-
Drive Bar Diameter:
5 in.

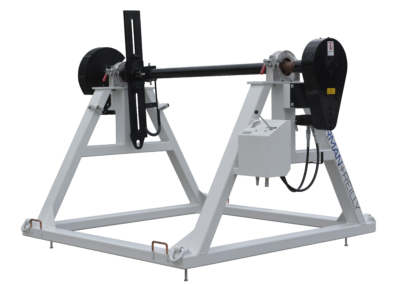

CRS-108/83-20k
-
Maximum Reel Size:
108 in. OD x 83 in. wide
-
Maximum Reel Weight:
20,000 static at full width
-
Payout Brake:
Manual 20 in. dia. disc. Aluminum
-
Frame Configuration:
Reinforced truss on rectangular base
-
Frame Construction:
High-strength steel tubing
-
Length, overall, nom.:
11 ft., 11 in.
-
Width, overall, nom.:
8 ft.
-
Height, overall, nom.:
6 ft., 5 in.
-
Grounding:
3/4 in. dia. copper ground loops (4)
-
Tie-Downs:
1 in. dia. Steel D-Rings (4)
-
Paint:
S+R White
-
Drive Bar Diameter:
3-15/16 in.
CRS-108/83-30k
-
Maximum Reel Size:
108 in. OD x 83 in. wide
-
Maximum Reel Weight:
30,000 static at full width
-
Payout Brake:
Manual 20 in. dia. disc. Aluminum
-
Frame Configuration:
Reinforced truss on rectangular base
-
Frame Construction:
High-strength steel tubing
-
Length, overall, nom.:
11 ft., 11 in.
-
Width, overall, nom.:
8 ft.
-
Height, overall, nom.:
6 ft., 5 in.
-
Grounding:
3/4 in. dia. copper ground loops (4)
-
Tie-Downs:
1 in. dia. Steel D-Rings (4)
-
Paint:
S+R White
-
Drive Bar Diameter:
5 in.
