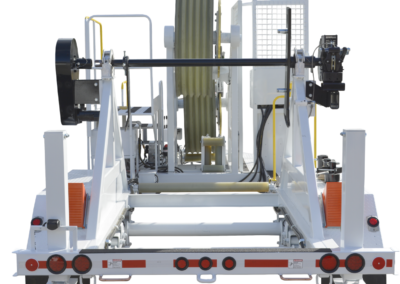

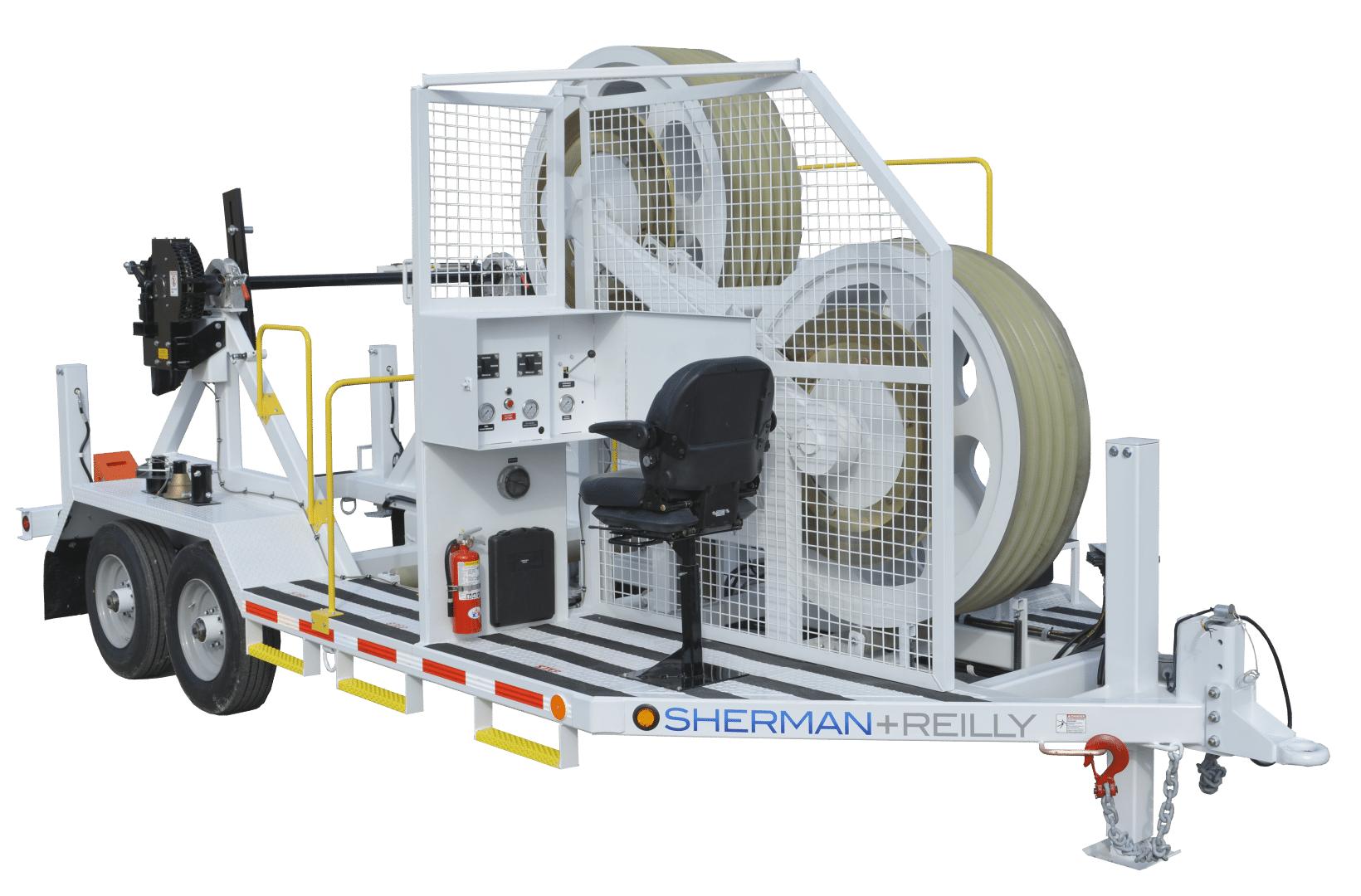

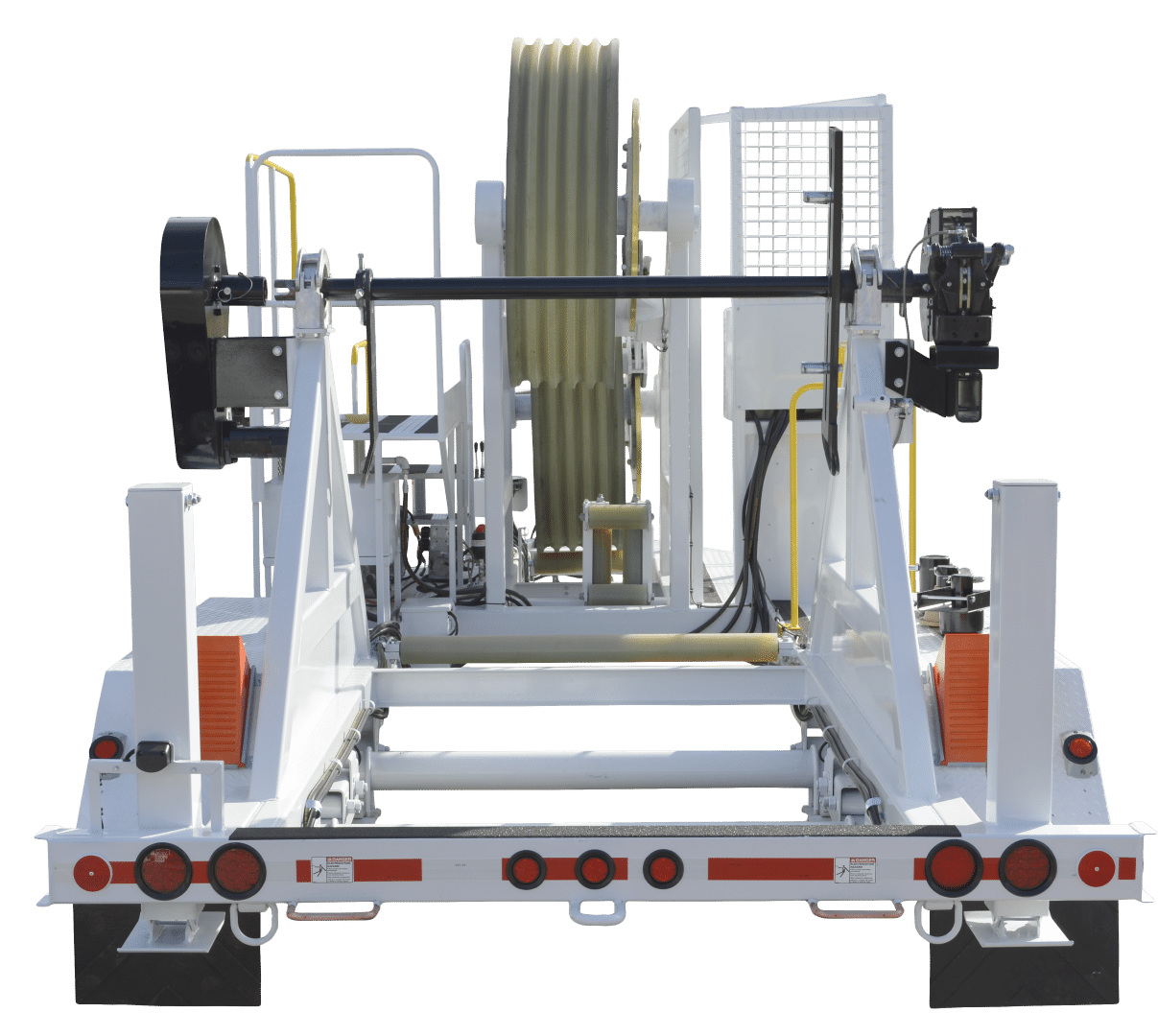

BWT-1545 Bullwheel Tensioner

5,000 LBS. 54 IN. BULLWHEEL TENSIONER

The Sherman+Reilly BWT-1545 bullwheel tensioner has a tensioning capacity of 5,000 lbs. at 4 mph. It includes a reel carrier that accommodates reels up to 96 in. O.D. by 54 in. wide weighing up to 12,000 lbs.

Download SPEC Sheet

Contact Us

Key Features

CAPABILITY

Precision bullwheel tensioner, with reel carrier and controlled conductor payout and retrieval system in a single piece of equipment.

TENSIONING CAPACITY

Tensioning capacity of 5,000lbs in a compact footprint.

REEL CAPACITY

Integrated reel carrier accommodates reels up to 96″ OD x 54” W and 12,000 lbs.

BULLWHEELS

Pair of 54-inch, 5-groove bullwheels with solid-cast machined urethane linings, coupled with 36” diameter bronze disc brake. Bullwheels are canted for right-hand lay, left-hand lay, or twisted pair conductor.

Specifications

Print BWT 1545 Bullwheel Tensioner Specifications

Tensioning Capacity

5,000 lbs.
Maximum Line Speed

4 mph
Payout Brake

16 in. Aluminum-Bronze (Hydraulic Control)
Maximum Reel Weight*

12,000 lbs. fully loaded
Bullwheels

Nominal Diameter
54 in.
Bullwheel Count
2 ea.
Bullwheel Groove Count
5 per Bullwheel
Groove Radius
1 in. Precision Machined
Groove Lining Material
Polyurethane
Bottom of Groove Diameter
51-3/4 in.
Fairlead Rollers

Adjustable Urethane

Click Here For ALL SPECS

OPTIONS

Full vinyl cover
Bullwheel only cover
Payout brake cover
Retriever option for powered conductor take-up and rewind
on reel stand
Solar battery charger
RDG-2100 Rotating Distribution Ground
DG-4100 Running Ground

All Specifications

BWT-1545 Bullwheel Tensioner

DOWNLOAD SPECIFICATIONS

Tensioning Capacity

5,000 lbs.
Maximum Line Speed

4 mph
Payout Brake

16 in. Aluminum-Bronze (Hydraulic Control)
Maximum Reel Weight*

12,000 lbs. fully loaded
Bullwheels

Nominal Diameter: 54 in.
Bullwheel Count: 2 ea.
Bullwheel Groove Count: 5 per Bullwheel
Groove Radius: 1 in. Precision Machined
Groove Lining Material: Polyurethane
Bottom of Groove Diameter: 51-3/4 in.
Fairlead Rollers

Adjustable Urethane
Length

(Overall, Nom.) 23 ft.
Width

(Overall, Nom.) 8 ft., 6 in.
Height

(Overall, Nom.) 9 ft. 10 in. Loaded with 96 in. Reel
