ATC AIR ADAPTER KIT

Blows the Pulling Cable off of Conventional Pullers or Winches Mounted on Trucks

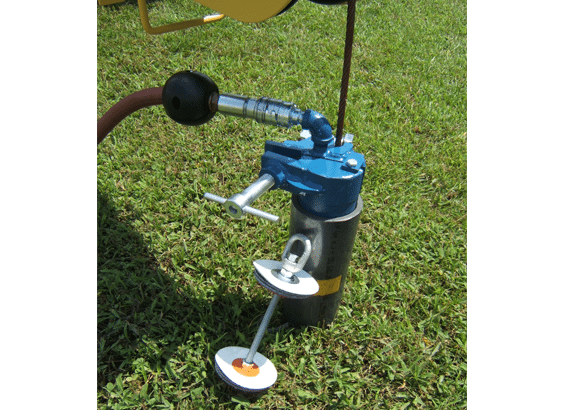

The Sherman & Reilly Model ATC-111 Air Adapter makes it possible to easily convert existing pullers without any additional parts. Once the panel has been mounted on the puller, one line is connected to a 125-225 CFM air compressor and the other is connected to the remote head, which is secured in the duct with the pulling cable installed.

The proper size birdie has already been attached to the end of the pulling cable. Blowing of the cable is then controlled from the panel by the operator who is in a position to monitor the cable as it feeds off of the puller.

Remote head with dies for 4″, 5″, and 6″ duct are furnished with complete set of hoses. Control panel and fittings are standard.

Key Features

Design

Designed to blow 3/8 in., 7/16 in. or 5/16 in. cable through 2 in. to 6 in. duct.

Configuration

Chicago pneumatic fitting and SCH40 standards.  Comes complete with a durable aluminum carrying case.

Sizing

Total weight of this adapter kit is 100 lbs. Operating air pressure is .10 to .25 lbs with an air relief valve safety of 25 PSI. To be Powered by a 125-225 CFM Air Compressor.

Options

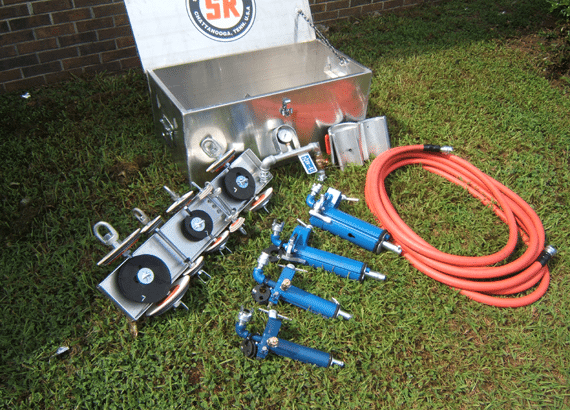

Includes various size birdies, remote head with dies, control panel, gauges, control levers, hoses, and connectors.

Specifications

Print Specifications

  • Carrying Case Dimensions:

    15″h x 17″w x 38″l; aluminum

  • Total Weight:

    100 lbs.

  • Operating Air Pressure:

    .10 to 25 lbs.

  • Air Relief Valve, safety:

    25 PSI

  • Compressor CFM:

    To be Powered by 125-225 CFM Air Compressor

OPTIONS

  • Duct Schedule: DB120, SCH80
  • U Specific Coupling
